Model : W-OP2
1Ø Under and Over voltage with adjustable time delay & Selectable voltage Code : 6009

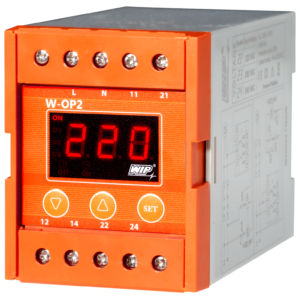

W-OP2 is a digital electronic instrument designed for AC voltage monitoring and protection in single phase system. Used in application such as under and over voltage. When the measured voltage moves outside the set-point limit, the relay will de-energize after the selected time delay (Off delay). The relay will automatically reset to energize when the input voltage is raised past the set-point plus the hysteresis value and the adjustable delay period starts. At the end of timed period the relay will automatically energize again.
Feature | |
Approved standard : | CE Mark |
Power consumption : | 1.2 W |
Input voltage : | 220, 230 or 240 VAC 1Ø (Selectable) |
System frequency : | 50/60 Hz. |
Accuracy : | ± 0.5% of normal voltage |
Display : | 7-segment Red LED Letter 0.39” (9.90mm) |
Range | |
Over voltage (OV) : | Adjustable from 10 … 20% (Requirement 10-25%) |
Under voltage (UV) : | Adjustable from 2 … 20% (Requirement 2-25%) |
Differential (Hysteresis): | Preset at 1% |
Time | |
Delay off : | Under voltage : Adjustable from 0… 5 sec. Over voltage :Preset at 2 sec. |
Delay on : | Adjustable from 0…15 min |
Relay Output | |
Output type : | 2-pole change over (DPDT) |
Contact rating : | 5A at 250VAC |
Operations : | Mechanical : 2×107 times Electrical : 1 x 105 times |
Relay reset : | Automatic |
Environmental | |
Operating temperature: | -10°C to +55°C |
Storage temperature : | -10°C to +70°C |
Ambient humidity : | Max 85%RH |
Enclosure | |
Mounting : | DIN rail 35mm |
Housing : | ABS UL94V-0 |
Protection class : | IP20 |
Wire fixing : | Screw terminal block (3.5mm2 self lifting) |
Indicator : | LED 3mm |
Dimension in mm : | 55 x 76 x 106 |
Weight : | 222 g |
