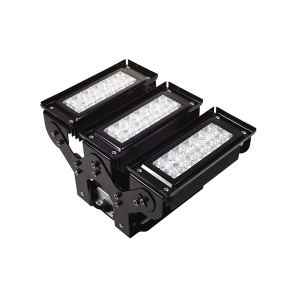

Model : WF03-150



Product Description

Power Consumption	150 W
Input Voltage	100-305 VAC 50/60Hz.
Light Source Flux (Lm)	18,750lm
Efficacy	125 lm/W
Power Factor	>0.95
Beam Angle	30°, 60° and 90°
Work Temperature	-10°C to +65°C
Life Time	50,000 hrs.
IP Rating	IP 67
Optic Material	PMMA
LED Light Source	Lumileds,Nichia
Heatsink	Aluminium 6063
Color Rendering Index (CRI)	>70, >80
Color Temperature (TC)	2,700K-6,500K
Driver	Meanwell, Inventronics
Dimension (WxLxH mm.)	245x314x171
Total Weight (kg.)	6.1 kg.
Warranty	3 years



---

Model : WF03-120



Product Description

Power Consumption	150 W
Input Voltage	100-305 VAC 50/60Hz.
Light Source Flux (Lm)	15,000lm
Efficacy	125 lm/W
Power Factor	>0.95
Beam Angle	30°, 60° and 90°
Work Temperature	-10°C to +65°C
Life Time	50,000 hrs.
IP Rating	IP 67
Optic Material	PMMA
LED Light Source	Lumileds,Nichia
Heatsink	Aluminium 6063
Color Rendering Index (CRI)	>70, >80
Color Temperature (TC)	2,700K-6,500K
Driver	Meanwell, Inventronics
Dimension (WxLxH mm.)	245x314x171
Total Weight (kg.)	6.1 kg.
Warranty	3 years



---

Model : WF03-90

Product Description

Power Consumption	90 W
Input Voltage	100-305 VAC 50/60Hz.
Light Source Flux (Lm)	11,250lm
Efficacy	125 lm/W
Power Factor	>0.95
Beam Angle	30°, 60° and 90°
Work Temperature	-10°C to +65°C
Life Time	50,000 hrs.
IP Rating	IP 67
Optic Material	PMMA
LED Light Source	Lumileds,Nichia
Heatsink	Aluminium 6063
Color Rendering Index (CRI)	>70, >80
Color Temperature (TC)	2,700K-6,500K
Driver	Meanwell, Inventronics
Dimension (WxLxH mm.)	245x204x181
Total Weight (kg.)	6.1 kg.
Warranty	3 years



---

Model : WF03-70



Product Description

Power Consumption	70 W
Input Voltage	100-305 VAC 50/60Hz.
Light Source Flux (Lm)	8750lm
Efficacy	125 lm/W
Power Factor	>0.95
Beam Angle	30°, 60° and 90°
Work Temperature	-10°C to +65°C
Life Time	50,000 hrs.
IP Rating	IP 67
Optic Material	PMMA
LED Light Source	Lumileds,Nichia
Heatsink	Aluminium 6063
Color Rendering Index (CRI)	>70, >80
Color Temperature (TC)	2,700K-6,500K
Driver	Meanwell, Inventronics
Dimension (WxLxH mm.)	245x204x181
Total Weight (kg.)	4.5 kg.
Warranty	3 years



---

Model : WF03-40



Product Description

Power Consumption	40 W
Input Voltage	100-305 VAC 50/60Hz.
Light Source Flux (Lm)	5,000lm
Efficacy	125 lm/W
Power Factor	>0.95
Beam Angle	30°, 60° and 90°
Work Temperature	-10°C to +65°C
Life Time	50,000 hrs.
IP Rating	IP 67
Optic Material	PMMA
LED Light Source	Lumileds,Nichia
Heatsink	Aluminium 6063
Color Rendering Index (CRI)	>70, >80
Color Temperature (TC)	2,700K-6,500K
Driver	Meanwell, Inventronics
Dimension (WxLxH mm.)	245x91x136
Total Weight (kg.)	2.3 kg.
Warranty	3 years
