LED Driver

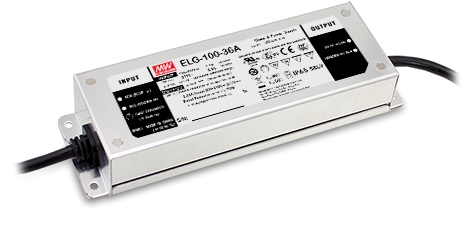

Meanwell ELG Series

Model :

ELG-75

ELG-100

ELG-150

ELG-200

ELG-240

Wattage : 75~240W

Features　: LED Driver ELG Series

  • Input range : 100~305VAC 50/60Hz.
  • Case : Metal case, IP67/IP65 design for indoor or outdoor installations
  • Function options : Output adjustable via potentiometer; 3 in 1 dimming (0~10Vdc or 10V PWM signal or resistance, dim-to-off); smart timer dimming; DALI; auxiliary DC output (ELG-150 BE-Type)
  • Suitable for LED street lighting and outdoor LED lighting
  • 5 Years Warranty

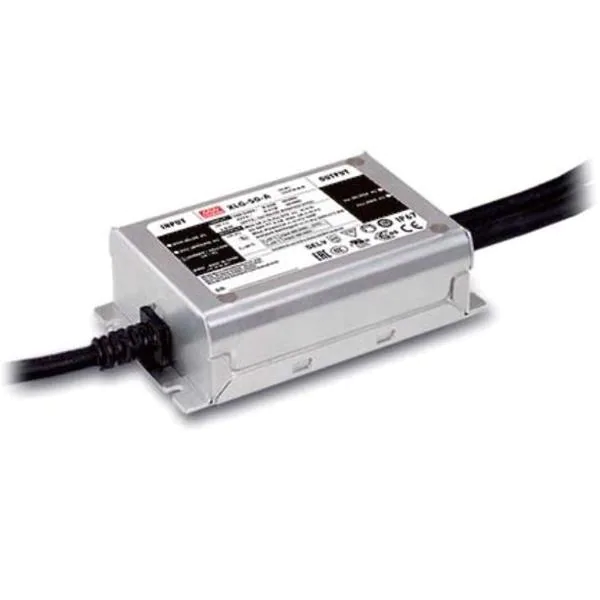

Meanwell XLG Series

Model :

XLG-50-A

Wattage : 50W
Features　: LED Driver XLG Series
  • Wide input range 100~305VAC
  • Constant power mode with adjustable output current (Constant current mode for XLG-20)
  • Built-in active PFC function and Efficiency up to 90%
  • Dimming functions with 3 in 1
  • Protections: Short circuit/ Over voltage/ Over temperature
  • Surge protection with 6KV(L/N-FG)/4KV(L-N); 4KV(L/N-FG)/2KV(L-N) for XLG-20
  • 5 years warranty

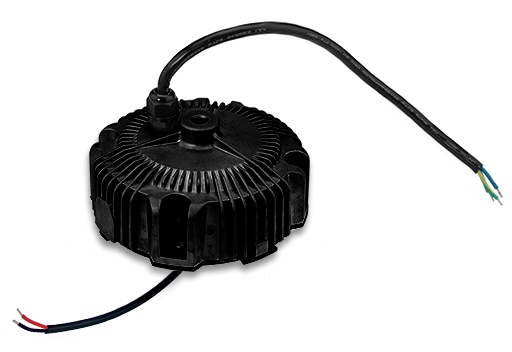

Meanwell HBG Series

Model :

HBG-60

HBG-100

HBG-160

HBG-200

HBG-240

Wattage : 60W~240W

Features　: LED Driver HBG Series

  • Circular shape design : HBG-60 : plastic case; HBG-100/160/240 : metal case; HBG-60P/100P/160P/240P : PCB type
  • 90~305VAC input, built-in active PFC function [90~295VAC for HBG-60(P)]
  • Circular shape design: HBG-60: plastic case, HBG-100/160/240: metal case HBG-60P/100P/160P/240P:PCB type
  • IP67/IP65 design for indoor or outdoor installations for HBG-100/160/240
  • Built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance) for HBG-100(P)/160(P)/240(P) B type
  • Type “HL” LED drivers for use in Class I, Division 2 hazardous (Classified) location luminaries (HBG-100/160 only)
  • Suitable for LED high/low bay lighting, stage lighting and spot lighting
  • 5 years Warranty
